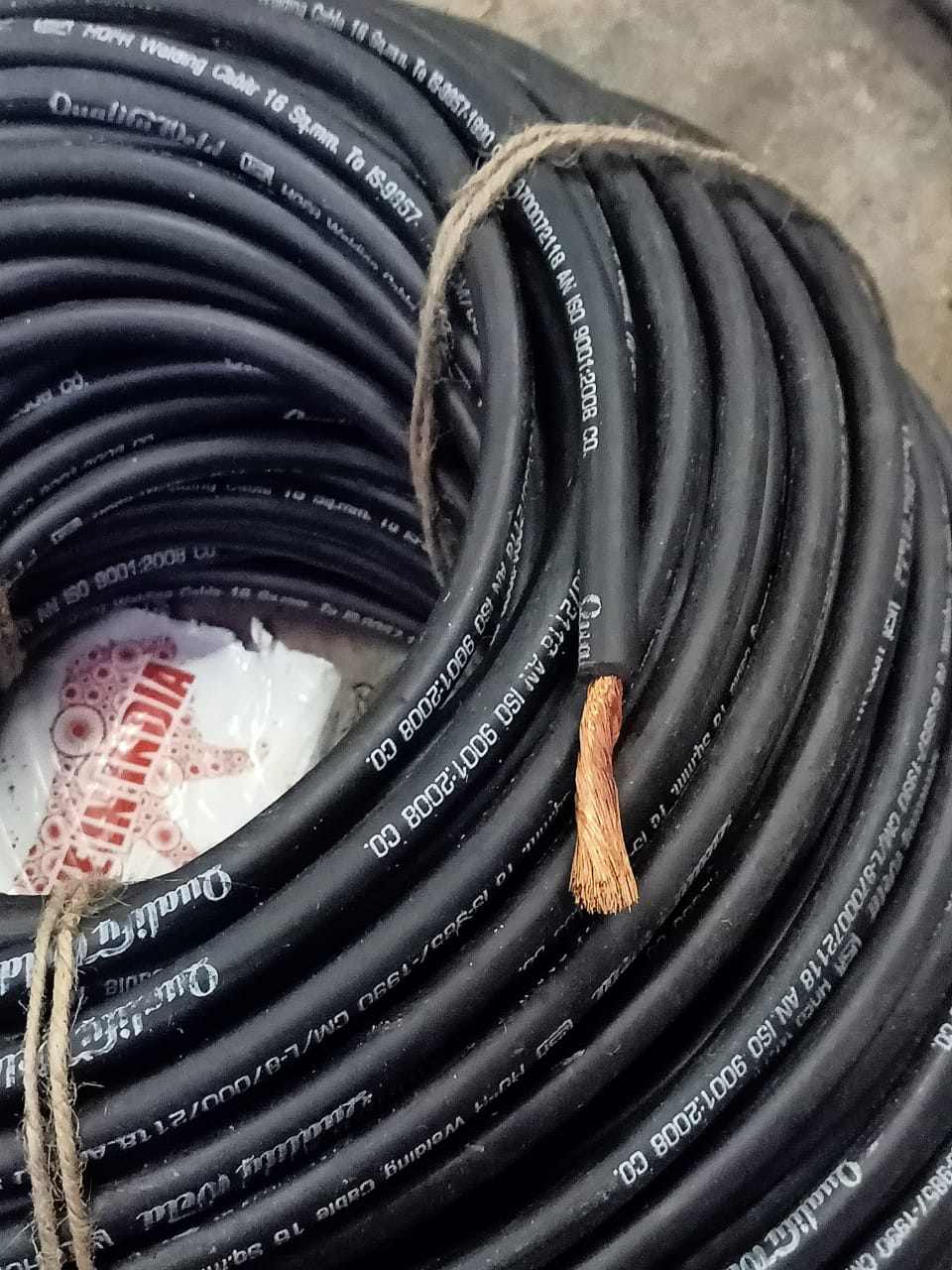

Welding Cables

Welding Cables

Welding Cables have to meet the necessary safety and quality standards for maintaining the safety of the workplace and that is the quality assurance that we provide with the products we supply. Our cables are resistant to heat and oil and also have fire retardant properties. They can work at high temperatures and can handle high currents. They are lightweight which enables them to be used anywhere, anytime and boast of a long life.

Working Temperature HOFR-90 C (Aluminum)

Aluminum	Nominal Cross Sectional Area of Conductor	Number/ Nom. Dia of Wires	Thickness of Insulation (Nominal)	Current Rating (AMP) Air Following Duty Cycle HOFR Compound
	mm2	mm	mm	100% 60% 30%
	25	355/0.3	2	144 186 263
	35	495/0.3	2	176 227 321
	60	707/0.3	2.2	222 287 405
	70	990/0.3	2.4	280 361 511
	95	1344/0.3	2.6	339 438 619
	120	1697/0.3	2.8	404 522 738

Working Temperature HOFR-90 C (Aluminum)

Copper	Nominal Cross Sectional Area of Conductor	Number/ Nom. Dia of Wires	Thickness of Insulation (Nominal)	Current Rating (AMP) Air Following Duty Cycle HOFR Compound
	mm2	mm	mm	100% 60% 30%
	16	510/0.2	2	135 174 246
	25	796/0.2	2	177 228 343
	35	1114/0.2	2	221 285 403
	50	707/0.3	2.2	279 360 509
	70	990/0.3	2.4	352 454 643
	95	1344/0.3	2.6	424 547 774
